Does your iPad 8 show that it is charging but the battery percentage does not increase, suffer from unusual battery drain or fail to communicate correctly with a computer?
Console Wizard provides professional iPad 8 Tristar 610A3B repair in Bolton, Greater Manchester, together with a UK-wide component-level repair service for customers who send their iPad to our repair centre.
For £89.99, our engineers investigate the charging fault and, where the 610A3B charging IC is responsible, carry out component-level replacement of the faulty IC on the iPad's logic board.
This is a specialist microsoldering repair performed directly on the iPad logic board rather than a simple plug-in component replacement.
A successfully completed repair receives our standard 3-month warranty covering the original repaired fault.
Common iPad 8 Tristar 610A3B Fault Symptoms
A fault involving the charging and USB communication circuitry can produce several different symptoms.
Problems that may require investigation include:
• iPad shows the charging symbol but the battery percentage does not increase
• Battery percentage decreases while connected to a charger
• Unusually rapid battery drain
• iPad does not charge correctly
• iPad will not power on or boot correctly
• Computer does not recognise the iPad
• Charging behaviour remains abnormal with known-working cables and chargers
These symptoms do not automatically confirm a defective 610A3B IC. A faulty battery, damaged Lightning charging port or another logic-board component can produce similar symptoms.
iPad 8 Fake Charging
One symptom associated with charging-circuit faults is commonly described as fake charging.
The iPad may display the charging symbol when a Lightning cable is connected, but the battery percentage remains unchanged or continues to fall.
This indicates that the iPad has detected a charging connection but is not charging correctly.
Because several components are involved in the charging system, the underlying fault should be diagnosed rather than assuming that the battery or charging port requires replacement.
iPad 8 Battery Draining Quickly
Abnormally rapid battery drain can sometimes be associated with a fault within the charging or communication circuitry.
However, rapid battery drain does not automatically mean that the Tristar IC is faulty.
An ageing or deteriorated battery can produce very similar symptoms.
If testing indicates that battery deterioration is responsible rather than a logic-board fault, an iPad 8 battery replacement would be the appropriate repair instead.
iPad 8 Not Charging
An iPad 8 that does not charge can have several possible causes.
These include:
• Faulty Lightning cable or charger
• Debris or damage inside the Lightning port
• Physically damaged charging port
• Faulty or deteriorated battery
• Charging-control circuitry fault
• Other logic-board faults
If several known-working cables and chargers have already been tested and the physical charging port appears undamaged, further electronic diagnosis may be required.
iPad 8 Not Connecting to a Computer
The Lightning connection is used for both charging and data communication.
A fault within the circuitry responsible for communication between the iPad and connected equipment can therefore affect computer recognition as well as charging.
If your iPad 8 is not recognised by a computer, the Lightning cable and physical charging port should also be considered before concluding that the 610A3B IC is responsible.

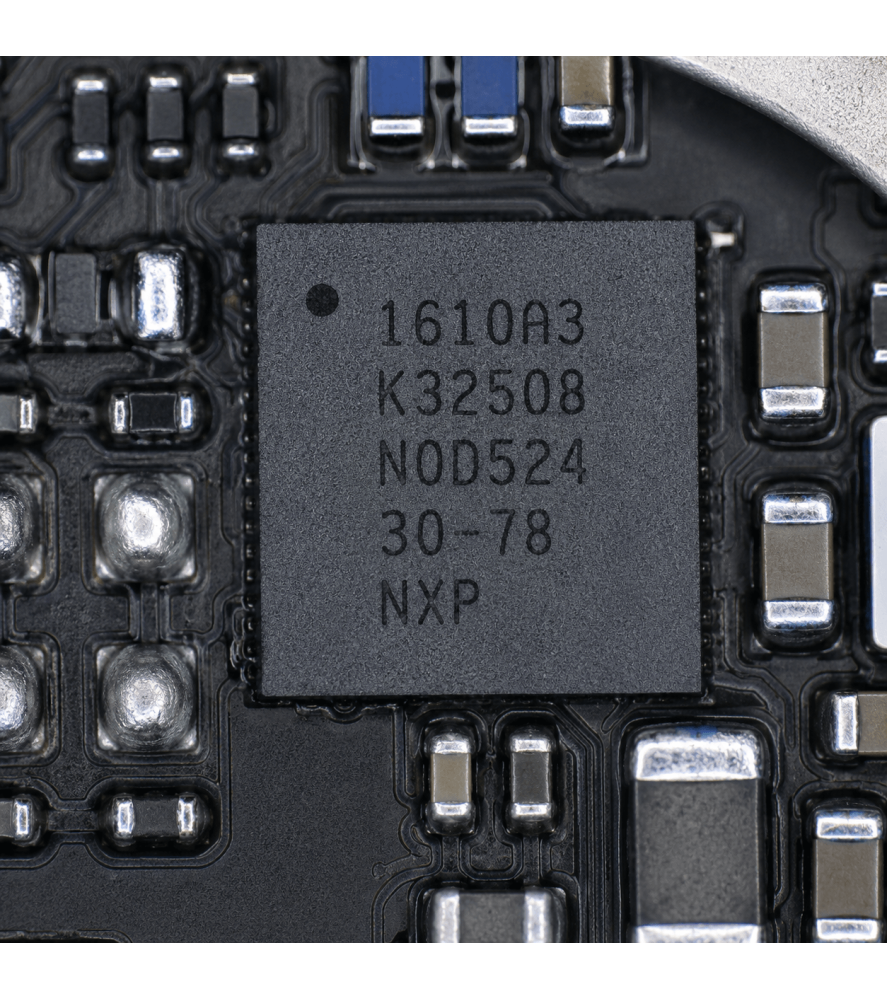

What Is the iPad 8 Tristar 610A3B IC?
The 610A3B IC is part of the electronic circuitry involved in the iPad's charging and USB communication system.
Unlike the Lightning charging port or battery, this component is located directly on the iPad's logic board.
A defective IC therefore cannot simply be unplugged and replaced.
The component must be professionally removed from the logic board and a replacement installed using specialist microsoldering equipment.
Professional iPad 8 Microsoldering Repair
Replacing the 610A3B IC requires component-level logic-board repair.
The iPad must first be professionally dismantled so that the logic board and charging circuitry can be accessed.
The relevant circuitry can then be inspected and tested to help determine whether the 610A3B IC or another component is responsible for the fault.
Where replacement is required, the faulty IC is carefully removed and a replacement component installed using professional microsoldering equipment.
The repaired board is then tested before the iPad is reassembled.
What Does Our iPad 8 Tristar Repair Include?
Our professional iPad 8 610A3B charging IC repair includes:
• Professional dismantling of the iPad
• Charging-system investigation
• Logic-board inspection
• Component-level diagnosis
• Removal of the faulty 610A3B IC where confirmed
• Replacement charging IC installation
• Professional microsoldering
• Charging functionality testing
• USB/data communication testing where applicable
• Professional reassembly
• 3-month warranty covering the original repaired fault
What Can Cause an iPad Charging IC Fault?
Electronic components within an iPad can fail for a variety of reasons.
Electrical problems associated with damaged, defective or poor-quality charging equipment can potentially contribute to charging-circuit faults, but it is not appropriate to assume that every failed charging IC has been caused by a particular cable or charger.
Component failure, previous damage and faults elsewhere within the charging system can also be relevant.
For this reason, diagnosis of the actual fault is more useful than assuming its cause from the symptoms alone.
Tristar Fault or Charging Port Fault?
A faulty charging IC and a physically damaged Lightning port require different repairs.
If your Lightning cable feels loose, charging changes when the cable is moved, internal contacts are visibly damaged or the connector only works at certain angles, the physical charging port should be investigated.
Console Wizard provides a separate iPad 8 Lightning charging port repair for these faults.
If the physical connector is undamaged but the iPad demonstrates abnormal charging or communication behaviour, electronic diagnosis may be required.
Tristar Fault or Battery Fault?
A deteriorated battery can also cause rapid discharge, unexpected shutdowns and poor battery performance.
If the iPad charges correctly but simply provides significantly less usable time between charges than it previously did, battery deterioration may be a more likely explanation.
Console Wizard provides a separate iPad 8 battery replacement service where testing indicates that the battery itself is responsible.
Why Correct Diagnosis Is Important
Charging faults can be misleading because the battery, Lightning connector and logic-board charging circuitry all form part of the overall charging system.
Similar symptoms can therefore originate from completely different components.
Correct diagnosis helps determine whether the iPad requires a physical charging-port replacement, battery replacement, 610A3B IC repair or investigation of another logic-board fault.
This avoids replacing components unnecessarily when the actual fault is elsewhere within the device.
Will This Repair Delete My Data?
Component-level replacement of the charging IC does not normally require the iPad to be erased or reset.
However, important data should always be backed up whenever possible before any electronic device is submitted for repair.
We recommend maintaining a current backup of important photographs, documents and other information before sending or bringing your iPad to us.
iPad 8 A2270 Tristar 610A3B Repair
This repair service is for the Apple iPad 8th Generation A2270 and specifically covers faults where the 610A3B charging IC is identified as the defective component.
Different iPad generations can use different charging circuitry and components.
If you are unsure which iPad you own or which repair you require, check the model number before ordering or use our diagnosis service.
3-Month iPad 8 Tristar Repair Warranty
A successfully completed iPad 8 610A3B charging IC repair receives our standard:
3-month warranty covering the original repaired fault.
The warranty applies to the original fault repaired by Console Wizard.
It does not provide a general warranty covering unrelated components or new faults elsewhere within the iPad.
New accidental, physical or liquid damage occurring after the repair is also not covered by the original repair warranty.
iPad 8 Tristar Repair in Bolton
Looking for an iPad 8 Tristar or charging IC repair in Bolton or Greater Manchester?
Console Wizard provides professional component-level iPad repairs from our repair centre at 517 Tonge Moor Road, Bolton, Greater Manchester, BL2 3BG.
Local customers can bring their iPad directly to our Bolton repair centre during our normal opening hours.
No appointment is required.
UK-Wide iPad 8 Tristar Repair
You do not need to live in Bolton to use Console Wizard.
Our UK-wide iPad logic-board repair service allows customers throughout the country to send their iPad 8 to our Bolton repair centre for professional component-level diagnosis and repair.
Once the repair has been completed, the iPad is tested before being returned to you.
iPad 8 Tristar 610A3B Repair FAQs
How much does an iPad 8 Tristar 610A3B repair cost?
Our iPad 8 610A3B charging IC repair is £89.99.
What are the symptoms of an iPad 8 Tristar fault?
Possible symptoms include fake charging, abnormal charging behaviour, rapid battery drain and USB/data communication problems. These symptoms can also have other causes, so diagnosis is important.
What does fake charging mean?
Fake charging describes a situation where the iPad appears to recognise the charger but the battery percentage does not increase correctly or continues to decrease.
Will replacing the Tristar IC fix every iPad that won't charge?
No. A damaged Lightning port, faulty battery, charger, cable or another logic-board component can also prevent an iPad from charging.
Is this the same repair as replacing the charging port?
No. The Lightning charging port is a physical connector, while the 610A3B IC is an electronic component located on the logic board.
Can a faulty battery cause similar symptoms?
Yes. Battery deterioration can cause rapid discharge, poor battery life and unexpected shutdowns, which is why correct diagnosis is important.
Is the 610A3B IC soldered to the logic board?
Yes. Replacement requires specialist component-level microsoldering rather than simply connecting a replacement part.
Will this repair erase my data?
The repair does not normally require the iPad to be erased, although we recommend maintaining a current backup before any repair whenever possible.
Does the repair have a warranty?
Yes. A successfully completed repair receives our standard 3-month warranty covering the original repaired fault.
Do you repair iPad charging IC faults in Bolton?
Yes. Our repair centre is at 517 Tonge Moor Road, Bolton, Greater Manchester, BL2 3BG.
Can I send my iPad 8 to you from elsewhere in the UK?
Yes. Console Wizard provides a UK-wide iPad repair service for customers who cannot visit our Bolton repair centre.
Why Choose Console Wizard for iPad 8 Tristar Repair?
Console Wizard provides professional iPad logic-board and microsoldering repairs in Bolton, Greater Manchester, together with a UK-wide repair service.
The 610A3B is a logic-board component, so replacing it requires specialist equipment and component-level soldering experience.
Importantly, we recognise that similar charging symptoms can be caused by the battery, physical Lightning port or other electronic components. Correct diagnosis helps identify which part of the charging system actually requires repair.
A successfully completed repair receives our standard 3-month warranty covering the original repaired fault.
Console Wizard has provided professional electronics repair services since 2008.
Local customers can bring their iPad directly to our Bolton repair centre, while customers elsewhere in the country can use our UK-wide repair service.
