Upgrade your Nintendo DSi to USB-C charging with our professional USB-C charging port modification. The original proprietary Nintendo charging socket is permanently removed and replaced with a modern USB-C connection.
Our Nintendo DSi USB-C modification costs £49.99 and includes the appropriate 5.1kΩ CC resistors, allowing the modified console to charge using both USB-A to USB-C and USB-C to USB-C cables with suitable USB power sources.
The USB-C connection is for charging only and does not add USB data-transfer functionality.
Nintendo DSi USB-C modifications are carried out at our Bolton, Greater Manchester repair centre, with a UK-wide service available for customers throughout the country.
Upgrade Your Nintendo DSi to USB-C Charging
The Nintendo DSi originally uses Nintendo's proprietary charging connection, requiring a compatible Nintendo charger.
Our Nintendo DSi USB-C mod permanently replaces this original charging connection with USB-C, allowing the console to be charged using a suitable USB-C cable and power source.
This provides a convenient modern charging connection without adding USB data functionality that was not provided by the original DSi charging system.

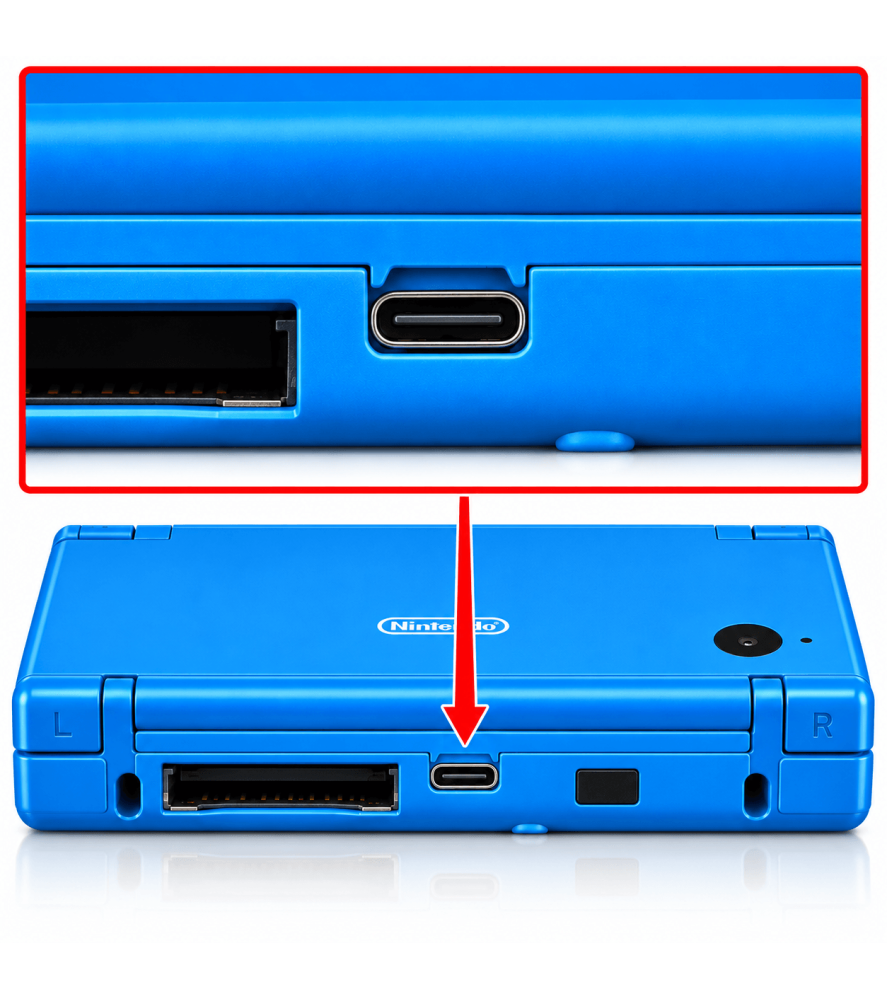

USB-C Replaces the Original Nintendo DSi Charging Port
The original proprietary Nintendo DSi charging socket is removed as part of the conversion and replaced with a USB-C charging connection.
The conversion is permanent. Once your Nintendo DSi has been modified, the original Nintendo charging connection is no longer available and the console is charged through its new USB-C port.
USB-A to USB-C and USB-C to USB-C Charging
Our Nintendo DSi USB-C modification supports both:
• USB-A to USB-C charging
• USB-C to USB-C charging
This means the modified Nintendo DSi is not restricted to USB-A charging sources.
The USB-C connection is correctly configured so that suitable USB-C power sources can recognise the console as a device requiring power.
5.1kΩ USB-C CC Resistors Fitted
A proper USB-C charging conversion involves more than simply installing a socket with a USB-C connector.
USB-C uses Configuration Channel connections, commonly referred to as CC lines, which allow a compatible USB-C source to detect when a device requiring power has been connected.
Our Nintendo DSi USB-C modification includes the appropriate 5.1kΩ CC pull-down resistors.
These allow suitable USB-C charging sources to detect the modified console and provide the appropriate power supply, enabling USB-C to USB-C charging as well as conventional USB-A to USB-C charging.
Charging Only – No USB Data Transfer
It is important to understand exactly what our Nintendo DSi USB-C modification provides.
The USB-C connection is installed specifically to replace the console's original charging connection.
• USB-C charging – Yes
• USB-A to USB-C charging – Yes
• USB-C to USB-C charging – Yes
• USB data transfer – No
Connecting the modified Nintendo DSi to a computer using a USB-C cable will not provide file-transfer functionality through the charging port.
The modification modernises the way the Nintendo DSi receives charging power. It does not create a USB data interface.
Does the USB-C Mod Make a Nintendo DSi Charge Faster?
No claim of increased charging speed is made as part of this modification.
USB-C provides a modern and convenient charging connection, but the Nintendo DSi continues to use its existing internal charging system.
The purpose of the modification is therefore charging convenience and cable compatibility, rather than converting the Nintendo DSi into a modern fast-charging device.
Can I Still Use My Original Nintendo DSi Charger?
No. The original Nintendo DSi charging socket is removed as part of the USB-C conversion.
Once modified, the proprietary Nintendo charger can no longer be connected to the console.
Your Nintendo DSi will instead be charged through its newly installed USB-C connection.
USB-C Modification for a Damaged Nintendo DSi Charging Port
The USB-C modification can also be a useful alternative if the original Nintendo DSi charging socket is already physically damaged or unreliable.
Common symptoms of a damaged charging connection can include:
• Nintendo DSi not charging
• Charging cuts in and out
• Charger needs moving to establish a connection
• Charger needs holding at an angle
• Charging connector feels loose
• Charging socket is visibly damaged
• Charging socket has become loose from the motherboard
Rather than replacing the damaged proprietary socket with another original-style charging connection, you can choose to have the Nintendo DSi converted to USB-C charging.
Original Charging Port Repair or USB-C Modification?
Console Wizard provides two options if the original Nintendo DSi charging socket is damaged.
Select our standard Nintendo DSi Charging Port Repair if you want the faulty socket replaced with an original-style charging connection.
Select this Nintendo DSi USB-C Modification if you would prefer the proprietary charging connection to be permanently replaced with USB-C.
The standard charging port replacement currently costs £44.99, while the USB-C modification costs £49.99.
What Is Included in the Nintendo DSi USB-C Mod?
• Removal of the original Nintendo DSi charging socket
• USB-C charging port professionally installed
• 5.1kΩ USB-C CC resistors installed
• USB-A to USB-C charging support
• USB-C to USB-C charging support
• Professional installation and testing
• 3-month repair warranty
The USB-C connection is for charging only and does not provide USB data transfer.
How We Install the Nintendo DSi USB-C Modification
The Nintendo DSi is professionally dismantled so that the original charging connection and motherboard can be accessed.
The proprietary Nintendo charging socket is carefully removed and the USB-C charging connection is professionally installed.
The appropriate CC configuration is fitted for USB-C charging support before the console is reassembled.
Once installation is complete, charging functionality is tested before the modification is completed.
Nintendo DSi USB-C Mod Near Me
Looking for a Nintendo DSi USB-C mod near me? Console Wizard provides professional USB-C charging modifications from our repair centre at 517 Tonge Moor Road, Bolton, Greater Manchester, BL2 3BG.
Customers in Bolton and Greater Manchester can bring their Nintendo DSi directly to our repair centre during normal opening hours. No appointment is required.
UK-Wide Nintendo DSi USB-C Modification
You do not need to live near Bolton to upgrade your Nintendo DSi to USB-C.
Customers throughout the UK can send their Nintendo DSi to our Bolton repair centre for professional USB-C charging-port conversion.
Once the modification has been completed, USB-A to USB-C and USB-C to USB-C charging are tested before the console is returned.
Nintendo DSi USB-C Modification FAQs
How much does the Nintendo DSi USB-C modification cost?
Our Nintendo DSi USB-C charging port modification costs £49.99.
Does the Nintendo DSi USB-C mod support USB-C to USB-C charging?
Yes. Our modification includes the appropriate 5.1kΩ CC resistors and supports USB-C to USB-C charging with suitable USB power sources, as well as USB-A to USB-C charging.
Does the Nintendo DSi USB-C port support data transfer?
No. The USB-C connection is for charging only. It does not add USB data-transfer functionality to the Nintendo DSi.
Does the USB-C modification make my Nintendo DSi charge faster?
No claim of faster charging is made. The modification provides a modern USB-C charging connection while the Nintendo DSi continues to use its existing internal charging system.
Can I still use my original Nintendo DSi charger afterwards?
No. The original proprietary charging socket is removed as part of the modification, so the Nintendo DSi is charged through its new USB-C connection afterwards.
Can you convert a Nintendo DSi with a broken charging port to USB-C?
Yes. If the original Nintendo DSi charging socket is physically damaged, the USB-C modification can provide an alternative to replacing it with another proprietary charging socket.
Should I choose the £44.99 charging port repair or £49.99 USB-C modification?
Choose the standard charging port repair if you want to retain an original-style Nintendo charging connection. Choose the USB-C modification if you want the original charging socket permanently replaced with USB-C.
Where can I get a Nintendo DSi USB-C mod near me?
Console Wizard provides Nintendo DSi USB-C modifications from our Bolton, Greater Manchester repair centre. Local customers can bring their console directly to us, while customers elsewhere in the UK can use our postal repair service.
Can I send my Nintendo DSi to you for a USB-C modification?
Yes. We provide a UK-wide service, allowing customers throughout the country to send their Nintendo DSi to our Bolton repair centre for professional USB-C conversion.
Does the Nintendo DSi USB-C modification have a warranty?
Yes. The completed Nintendo DSi USB-C modification includes our 3-month repair warranty covering the modification and original fault repaired. Subsequent accidental or physical damage is not covered.
